Gas-Arc Tech Master Pipeline, Point of Use, Single and Two Stage Gas Regulators for Acetylene gas purity to 4.5 (99.995%)

The Gas-Arc Tech-Master regulators are designed for use with Acetylene

Tech-Master fully comply with BCGA (British Compressed Gases Association) Codes of Practice.




GPS410-SeriesTech Master Single Stage Cylinder Regulator (GPS410 Series)

The Tech-Master GPS410 series single stage diaphragm cylinder regulators are designed for primary pressure control of technical grade acetylene gas up to grade 4.5 (99.995%) in applications where slight variation of outlet pressure from decreasing cylinder pressure is acceptable.



Features

  • Five Port Configuration
  • Rear panel mounting capabilities
  • Encapsulated seat design
  • Low wetted surface area
  • Full range of inlet and outlet fittings
  • Base and side entry options

Materials

  • Body Brass Barstock
  • Bonnet High Strength Alloy
  • Diaphragm Neoprene
  • Seat Polyamide
  • Filter 10 Micron 316L SS

Specification

  • Max Inlet Pressure 25 bar
  • Outlet Pressure 0-1 bar; 0-1.5 bar
  • Gauges 50mm
  • Temperature Range -20°C to 60°C
  • Flow Coefficient (Cv) 1
  • Weight 2Kg

How to order

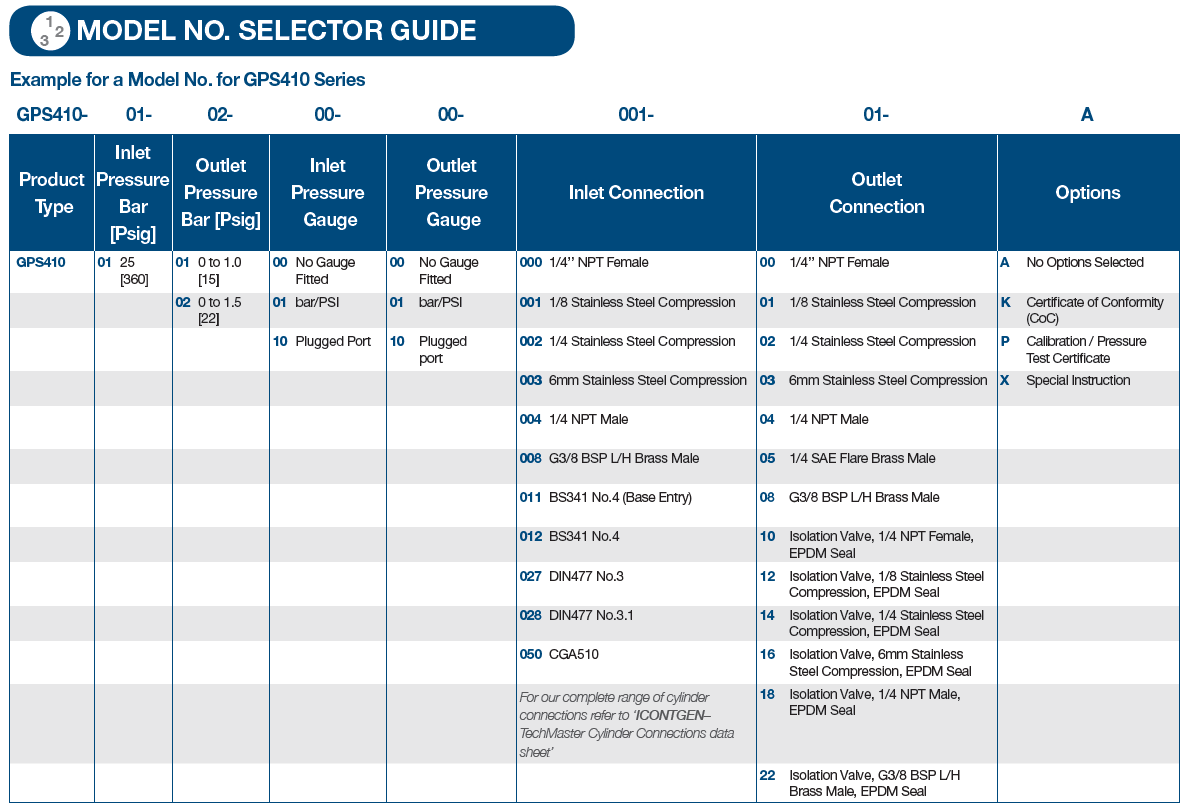

GPS410Click to enlarge

Catalogue

GPS410-pdfFor ordering information and further details on the full range please download the Tech Master Single Stage Cylinder Regulator (GPS410 Series) overview brochure – HERE


GPT410Tech Master Two Stage Cylinder Regulator (GPT410 Series)

The Tech-Master GPS410 series two stage diaphragm cylinder regulators are designed for primary pressure control of technical grade acetylene gas up to grade 4.5 (99.995%) in applications where constant delivery pressure is required as the cylinder pressure decreases.

GPT410 Series – EPDM Seal (Acetylene)

Features

  • Five Port Configuration
  • Encapsulated seat design
  • Low wetted surface area
  • Full range of inlet and outlet fittings
  • Base and side entry options

Materials

  • Body Brass Barstock
  • Bonnet High Strength Alloy
  • Diaphragm Neoprene
  • Seat Polyamide
  • Filter 10 Micron 316L SS

Specification

  • Max Inlet Pressure 25 bar
  • Outlet Pressure 0-1 bar; 0-1.5 bar
  • Gauges 50mm
  • Temperature Range -20°C to 60°C
  • Flow Coefficient (Cv) 079
  • Weight 2Kg

How to order

GPT410-orderClick to enlarge

Catalogue

GPT410-pdf For ordering information and further details on the full range please download the Tech Master Two Stage Cylinder Regulator (GPT410 Series) overview brochure – HERE


GPL410Tech Master Single Stage Line Regulator (GPL410 Series)

The Tech-Master GPL410 series single stage diaphragm line regulators are designed for primary pressure control of technical grade acetylene gas up to grade 4.5 (99.995%) on gas distribution systems.

Features

  • Four Port Configuration
  • Encapsulated seat design
  • Low wetted surface area
  • Full range of inlet and outlet fittings
  • Rear panel mount options

Materials

  • Body Brass Barstock
  • Bonnet High Strength Alloy
  • Diaphragm Neoprene
  • Seat Polyamide
  • Filter 10 Micron 316L SS

Specification

  • Max Inlet Pressure 25 bar
  • Outlet Pressure 0-1 bar; 0-1.5 bar
  • Gauges 50mm
  • Temperature Range -20°C to 60°C
  • Flow Coefficient (Cv) 1
  • Weight 1Kg

How to order

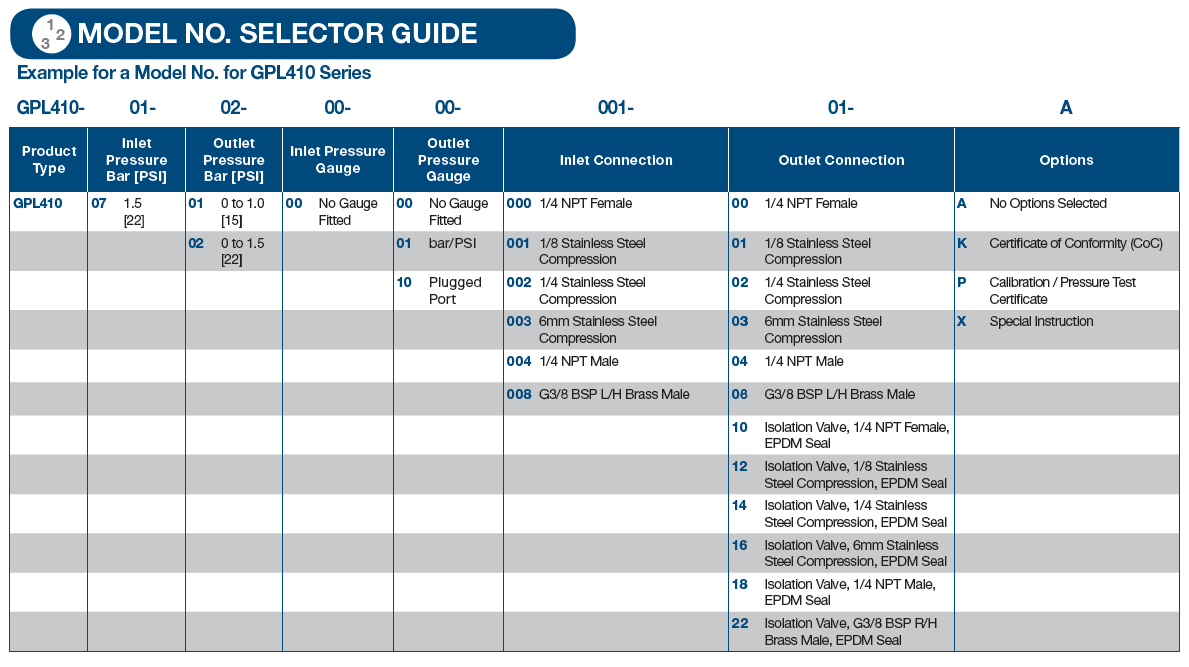

GPL410-orderingClick to enlarge

Catalogue

GPL410-Series-pdfFor ordering information and further details on the full range please download the Tech Master Single Stage Line Regulator (GPL410 Series) overview brochure – HERE


GPP410-SeriesTech Master Single Stage Point Of Use Regulator (GPP410 Series)

The Tech-Master GPP410 series single stage diaphragm point of use regulators are designed for primary pressure control of technical grade acetylene gas up to grade 4.5 (99.995%) on gas distribution systems

Features

  • Three Port Configuration
  • Encapsulated seat design
  • Low wetted surface area
  • Rear point mounting
  • Rear entry ¼” NPT
  • Full range of outlet fittings

Materials

  • Body Brass Barstock
  • Bonnet High Strength Alloy
  • Diaphragm Neoprene
  • Seat Polyamide
  • Filter – 10 Micron 316L SS

Specification

  • Max Inlet Pressure 25 bar
  • Outlet Pressure 0-1 bar; 0-1.5 bar
  • Gauges 50mm
  • Temperature Range -20°C to 60°C
  • Flow Coefficient (Cv) 1
  • Weight 1Kg

How to order

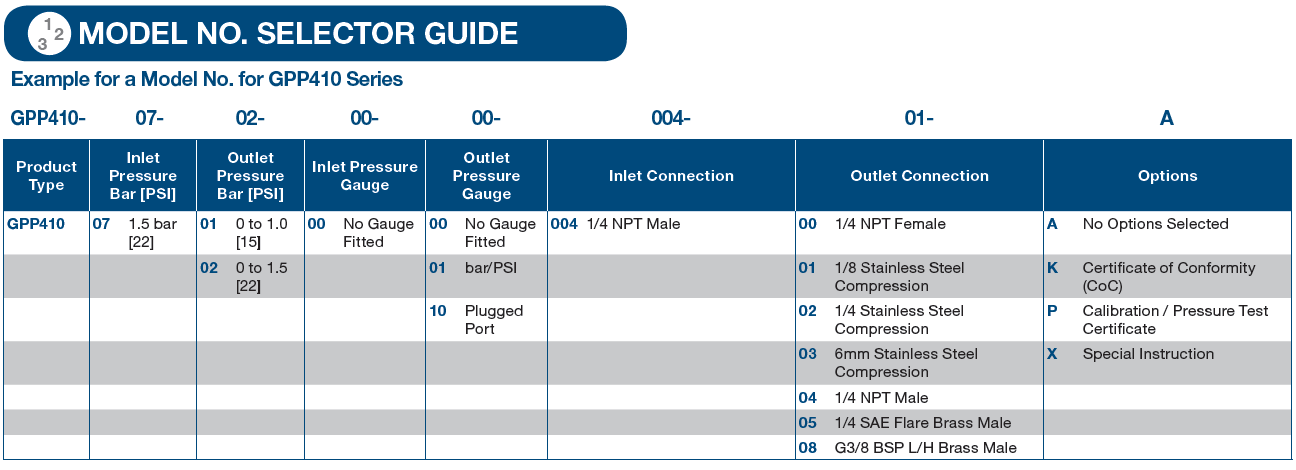

GPP410-orderClick to enlarge

Catalogue

GPP410-pdf For ordering information and further details on the full range please download the Tech Master Single Stage Point Of Use Regulator (GPP410 Series)  overview brochure – HERE




Gas-Arc Lab-Master Acetylene Pressure Regulators for Acetylene Up To Grade 5.0 (99.999%) Purity

Lab-Master Pipeline, Single-stage and two-stage nickel plated brass, stainless steel diaphragm regulators are designed to control high and low cylinder pressure, high purity (up to grade 5.0) gases from cylinders or pipelines to stable outlet pressure.  This is essential for speciality gas control applications throughout laboratory, research and development, analytical facilities and many industries.


LGS510Lab Master Single Stage Acetylene Cylinder Regulator (LGS510)

The Lab Master LGS510 Series single stage diaphragm regulators are designed for the primary pressure gas control of Acetylene up to grade 5.0 purity (99.999%) on applications where slight variation from decreasing cylinder pressure is acceptable.

LGS510 has EDPM Pressure Relief Valve – Acetylene

Features

  • Six Port Configuration
  • Rear Panel Mounting Capabilities
  • Encapsulated Seat Design
  • Low Wetted Surface Area
  • Full Range of Inlet & Outlet Fittings
  • Side Entry

Materials

  • Body – Nickel Plated Brass Barstock
  • Bonnet – High Strength Alloy
  • Diaphragm – 316L Stainless Steel
  • Seal – PTFE
  • Seat – Polyamide (Nylon)
  • Filter – 10 Micron 316L Stainless Steel

Specification

  • Max Inlet Pressure – 25 bar
  • Outlet Pressure – 0-1 bar; 0-1.5 bar
  • Gauges  – 50mm
  • Ports – ¼” NPT Female
  • Temperature Range – -20°C to +60°C
  • Flow Coefficient (Cv) – 0.1
  • Weight – 1.2 Kg



How to order

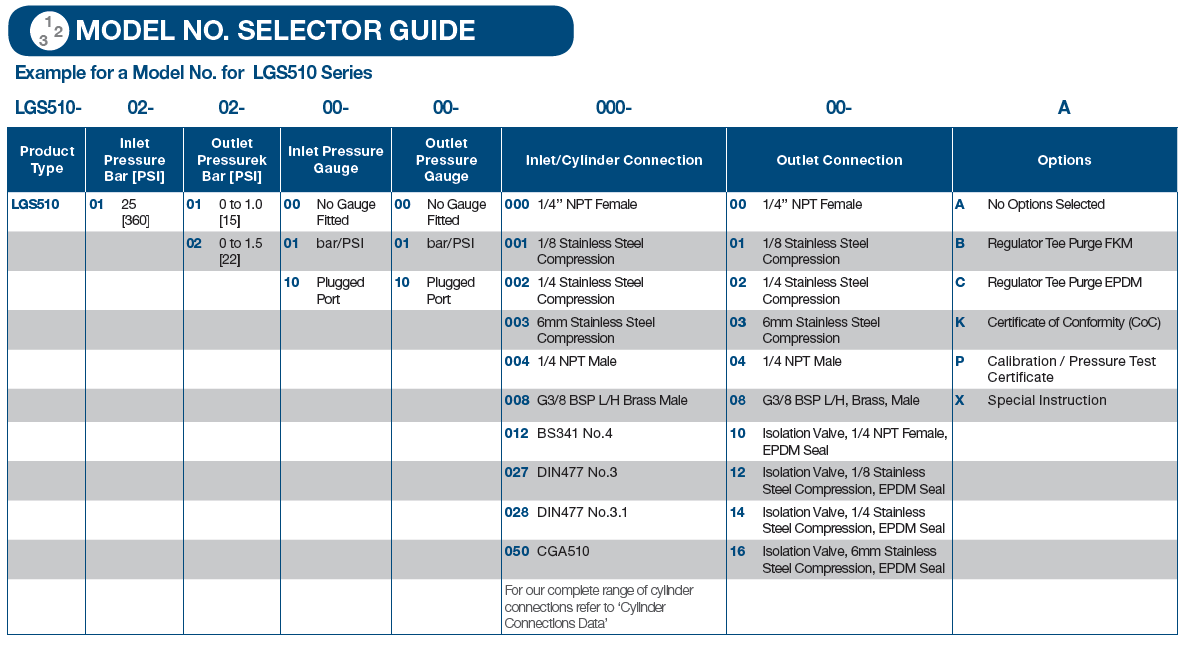

LGS510-howtoorderClick to enlarge

Catalogue

LGS510-pdfFor ordering information and further details on the full range please download the overview brochure – HERE




LGS510Lab Master Two Stage Acetylene Cylinder Regulator (LGT510)

The Lab Master LGT510 Series two stage diaphragm regulators are designed for the primary pressure gas control of Acetylene gases up to grade 5.0 purity (99.999%) on applications where consistent delivery pressure is required as cylinder pressure decreases.

LGT510 Series has EPDM Seal and EPDM Pressure Relief Valve – Acetylene

Features

  • Six Port Configuration
  • Encapsulated Seat Design
  • Low Wetted Surface Area
  • Full Range of Inlet & Outlet Fittings
  • Side Entry

Materials

  • Body – Nickel Plated Brass Barstock
  • Bonnet – High Strength Alloy
  • Diaphragm – 316L Stainless Steel
  • Seal – PTFE
  • Seat – Polyamide (Nylon)
  • Filter – 10 Micron 316L Stainless Steel

Specification

  • Max Inlet Pressure  – 25 bar
  • Outlet Pressure – 0-1 bar; 0-1.5 bar
  • Gauges – 50mm
  • Ports – ¼” NPT Female
  • Temperature Range – -20°C to +60°C
  • Flow Coefficient (Cv) – 0.079
  • Weight – 1.7 Kg

How to order

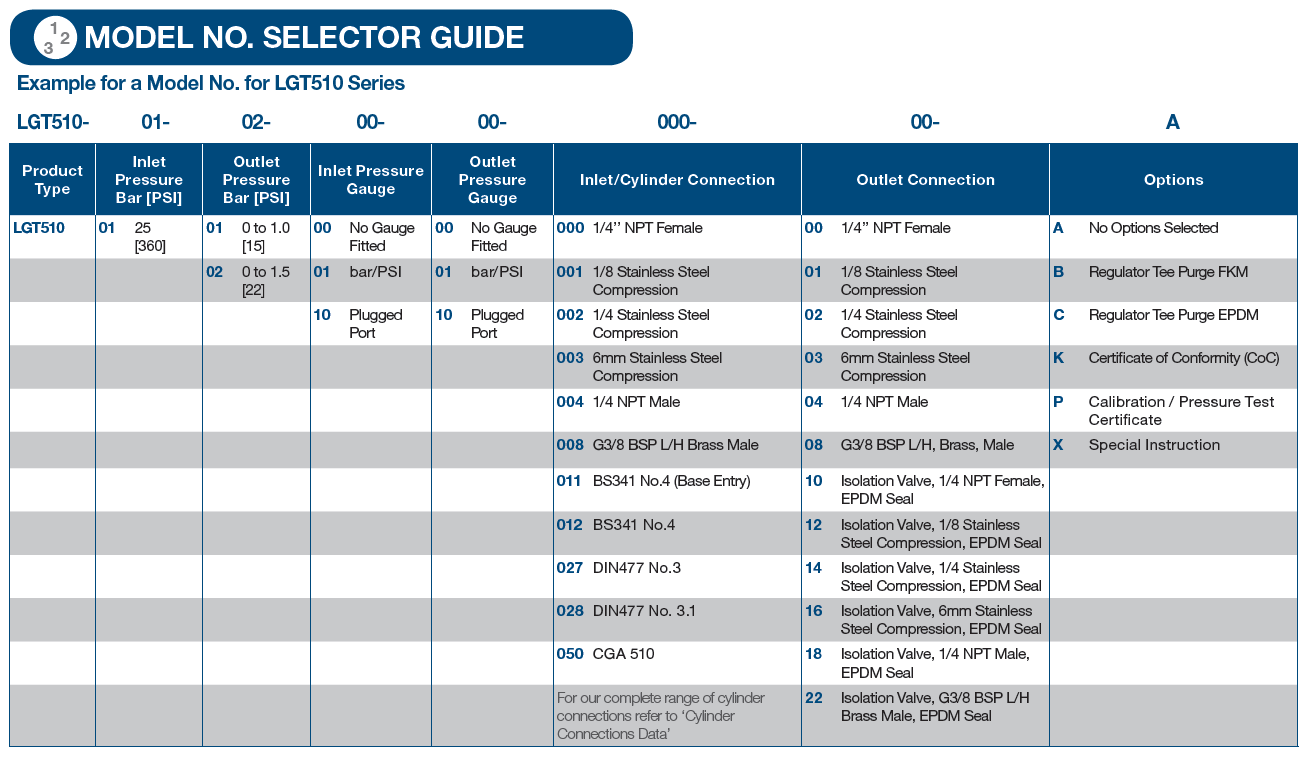

LGT510-how-to-orderClick to enlarge

Catalogue

LGT510pdfFor ordering information and further details on the full range please download the overview brochure – HERE




LGL510v2Lab Master Single Stage Acetylene In-Line Regulator (LGL510)

The Lab Master LGL510 Series single stage diaphragm line regulators are designed for the secondary pressure gas control of Acetylene gases up to grade 5.0 purity (99.999%) on gas distribution systems.

Features

  • Four Port Configuration
  • Rear Panel Mounting Capabilities
  • Encapsulated Seat Design
  • Low Wetted Surface Area
  • Full Range of Inlet & Outlet Fittings
  • Side Entry

Materials

  • Body – Nickel Plated Brass Barstock
  • Bonnet – High Strength Alloy
  • Diaphragm – 316L Stainless Steel
  • Seal – PTFE
  • Seat – Polyamide (Nylon)
  • Filter – 10 Micron 316L Stainless Steel

Specification

  • Max Inlet Pressure – 25 bar
  • Outlet Pressure – 0-1 bar; 0-1.5 bar
  • Gauges – 50mm
  • Ports – ¼” NPT Female
  • Temperature Range –  -20°C to +60°C
  • Flow Coefficient (Cv) – 0.1
  • Weight – 1.1 Kg

How to order

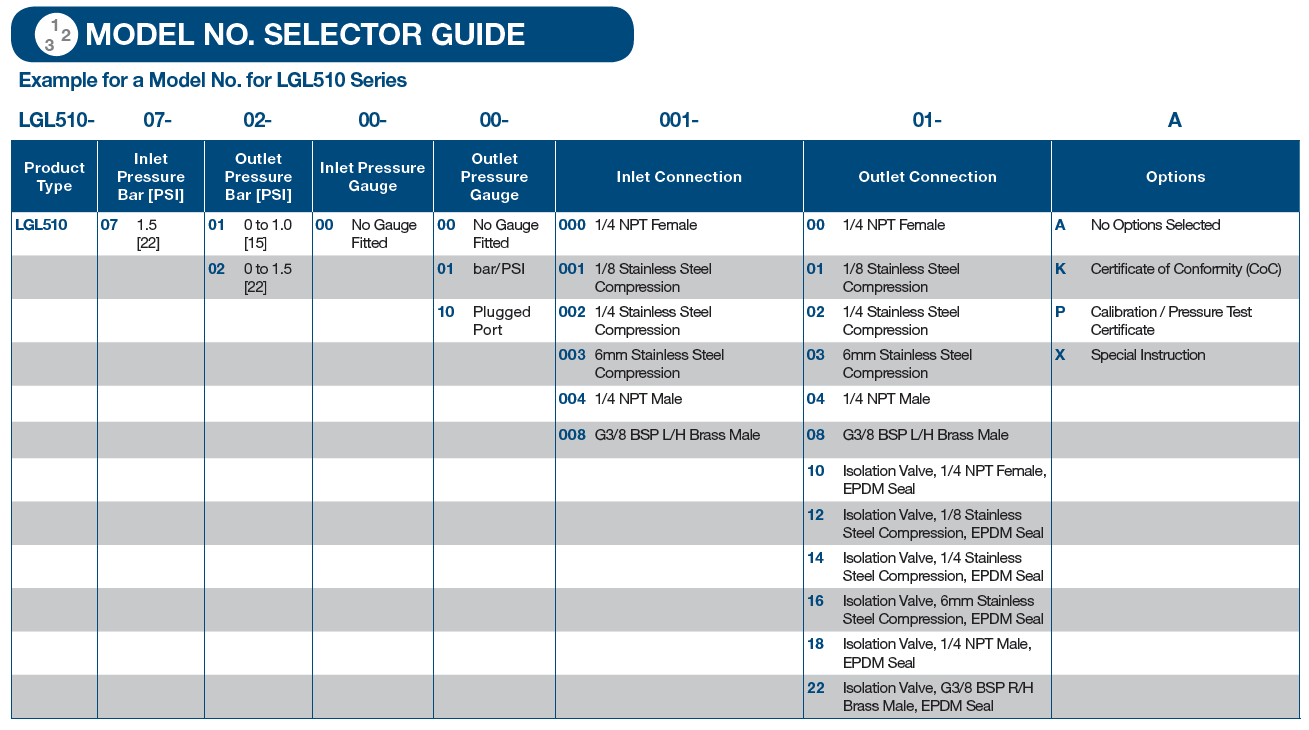

LGL510-How-to-orderClick to enlarge

Catalogue

LGL510pdfFor ordering information and further details on the full range please download the overview brochure – HERE






LGP510v2Lab Master Acetylene Single Stage Point of Use Regulator (LGP510)

The Lab Master LGL510 Series single stage diaphragm outlet point regulators are designed for the secondary pressure gas control of acetylene gases up to grade 5.0 purity (99.999%) on gas distribution systems.

Features

  • Three Port Configuration
  • Rear Point Mounting (1/4” NPT Female)
  • Encapsulated Seat Design
  • Low Wetted Surface Area
  • Full Range of Outlet Fittings
  • Rear Entry

Materials

  • Body – Nickel Plated Brass Barstock
  • Bonnet – High Strength Alloy
  • Diaphragm – 316L Stainless Steel
  • Seal – PTFE
  • Seat – Polyamide (Nylon)
  • Filter – 10 Micron 316L Stainless Steel

Specification

  • Max Inlet Pressure – 25 bar
  • Outlet Pressure – 0-1 bar; 0-1.5 bar
  • Gauges – 50mm
  • Ports – ¼” NPT Female
  • Temperature Range – -20°C to +60°C
  • Flow Coefficient (Cv) –  0.1
  • Weight – 1.2 Kg

How to order

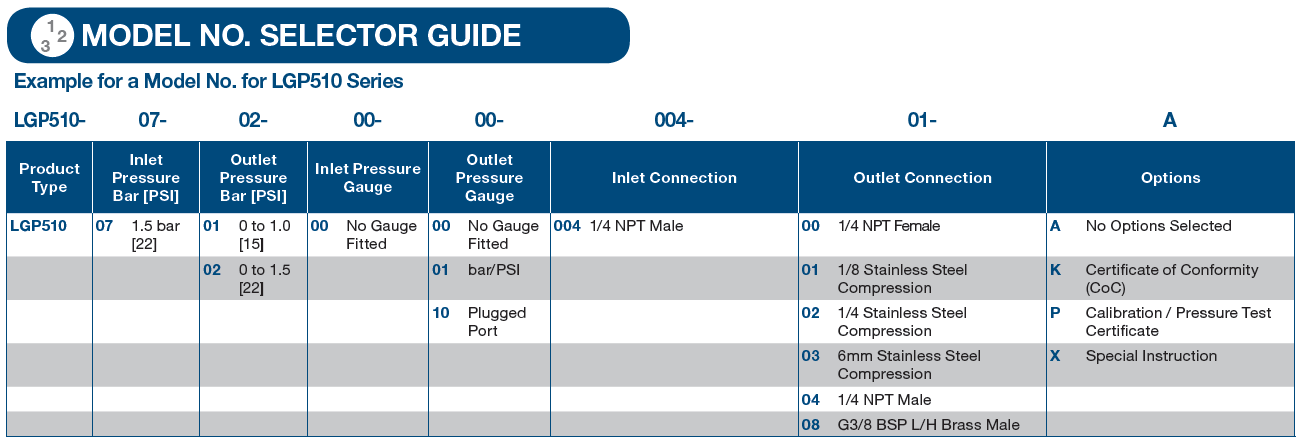

LGP510-how-to-orderClick to enlarge

Catalogue

LGP510 For ordering information and further details on the full range please download the overview brochure – HERE
